Pump sizing

Pump Sizing is a handy tool for industrial and domestic pump sizing and head calculation. It's designed to help determining the head of a pumping system based on the system requirements.

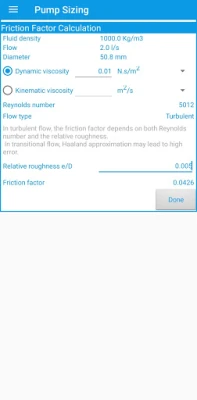

With our easy-to-use interface, you can quickly and accurately calculate the static head, pipes losses, fitting losses and the overall head of your pump. Our app also includes a window to calculate the friction factor.

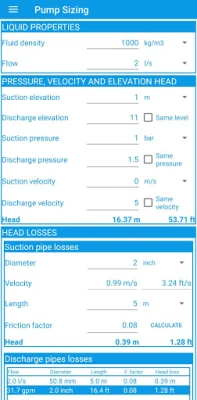

The calculation of pressure, velocity and elevation head requires the following inputs:
-Pressure head: liquid density, suction and discharge pressures
-Velocity head: suction and discharge velocities (the correction factor is taken 1)
-Elevation head: suction and discharge elevations

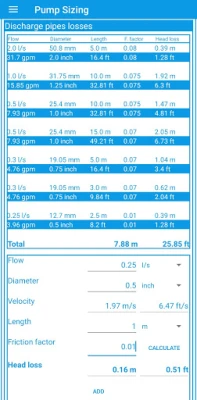

For pipes losses:
-Flow (total flow for suction pipe and branch flows for discharge branches pipes)
-Diameter
-Friction factor (Input or calculated)
-Length

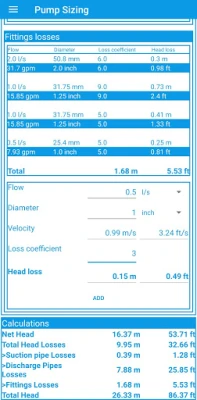

For fittings losses:
-Flow
-Diameter
-Loss coefficient

Results are automatically generated when required inputs are filled.

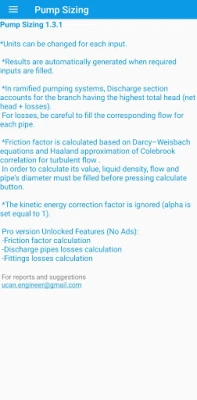

Read the notices for more information about calculations.
